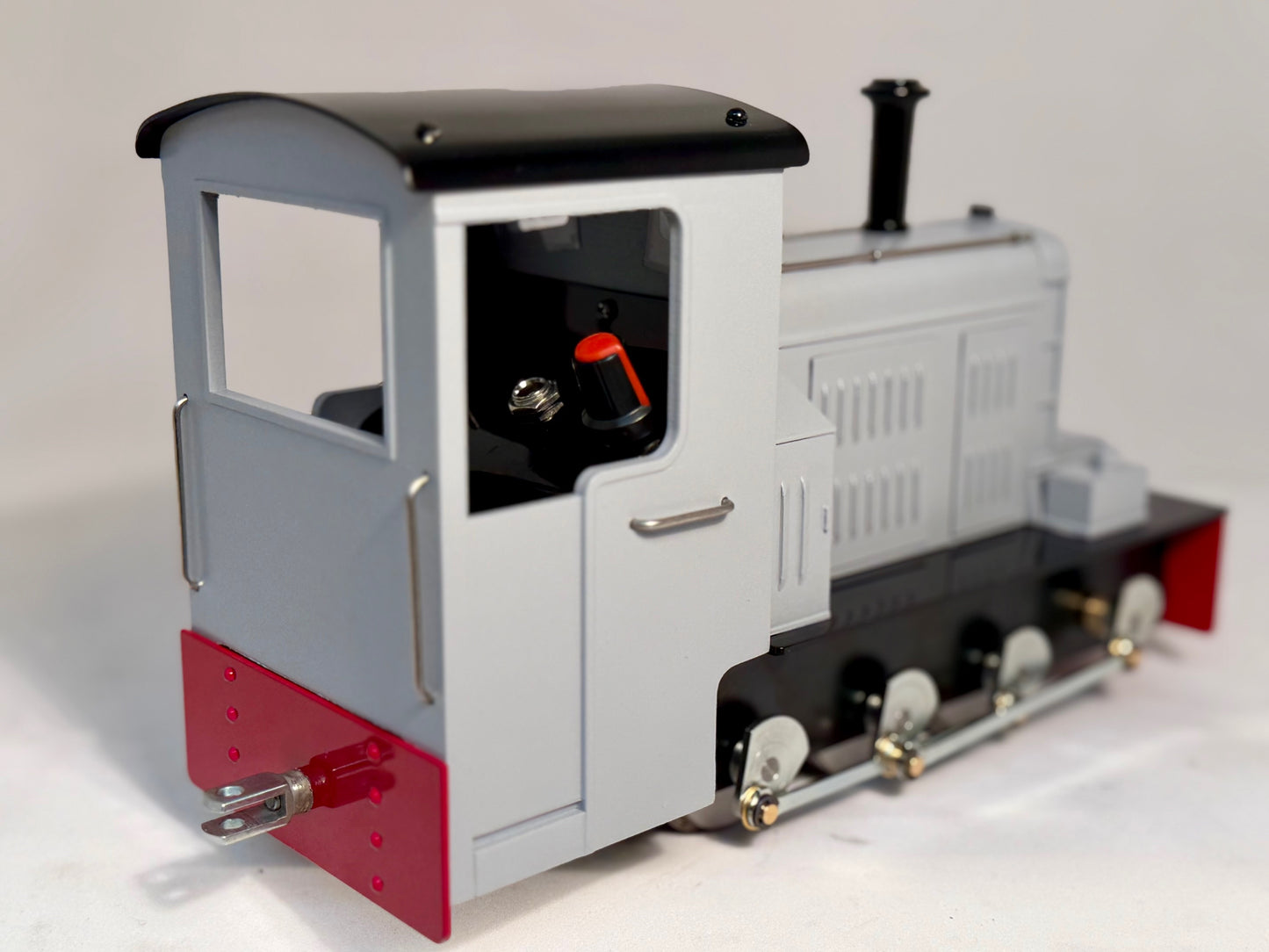

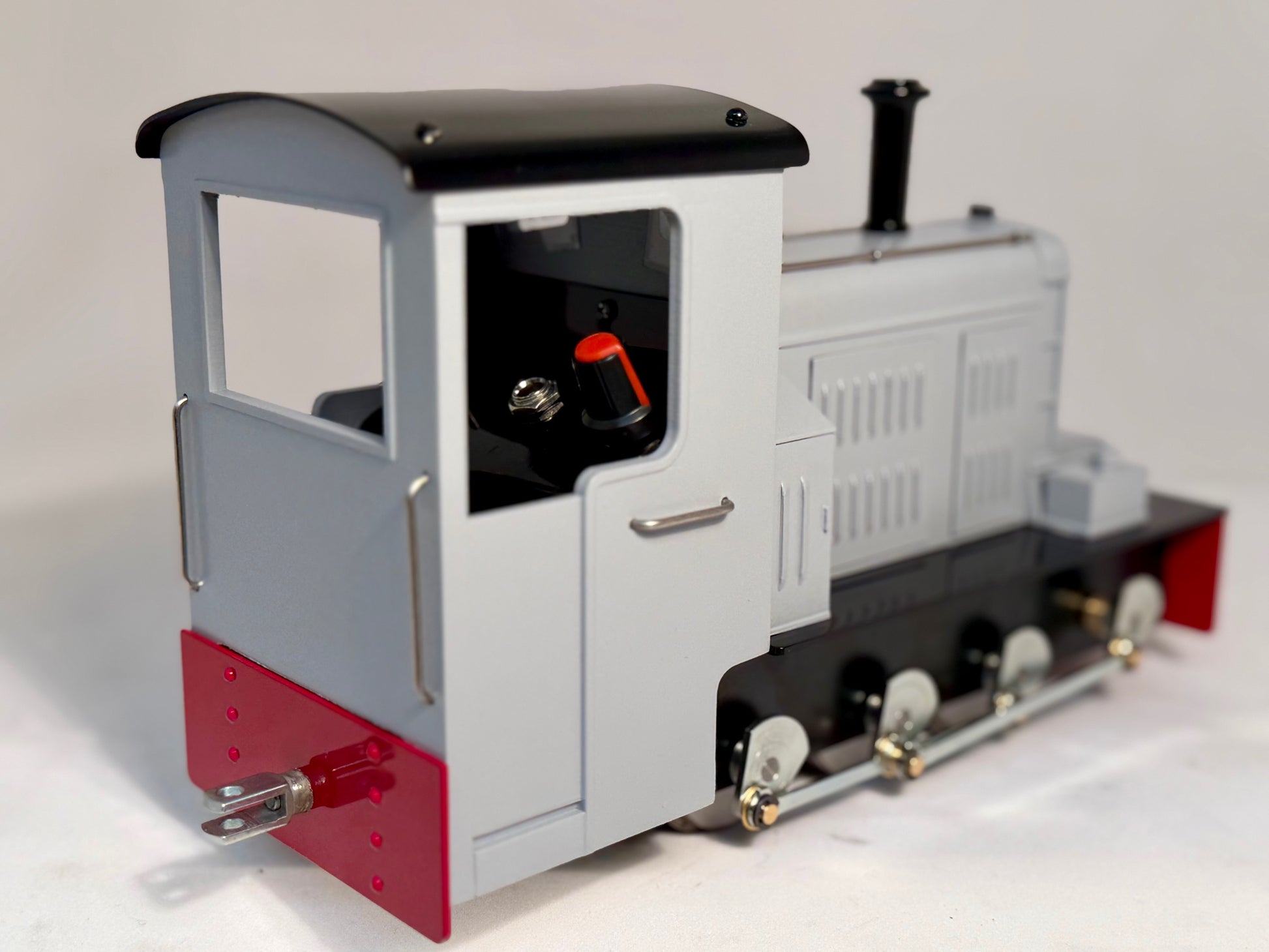

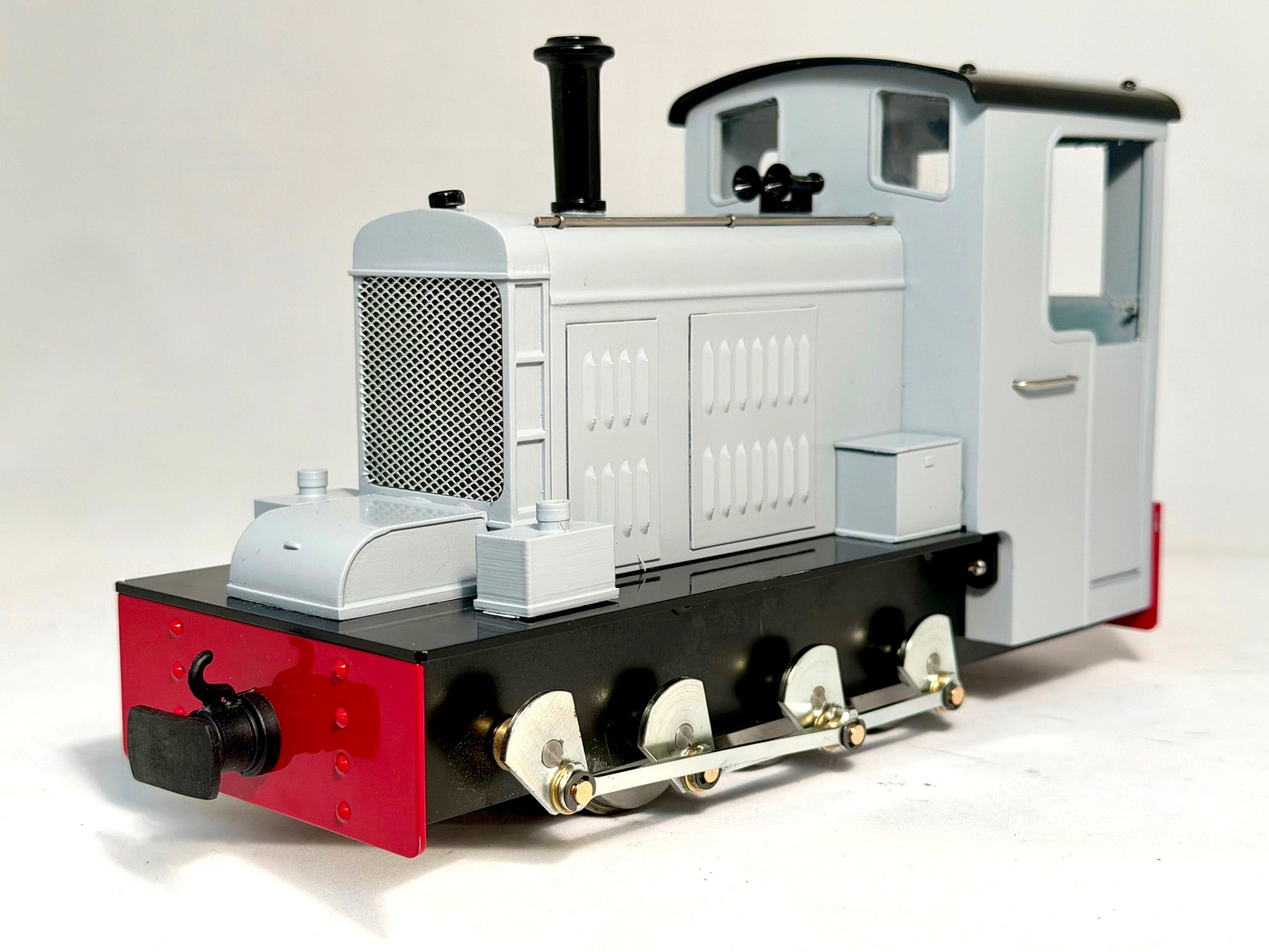

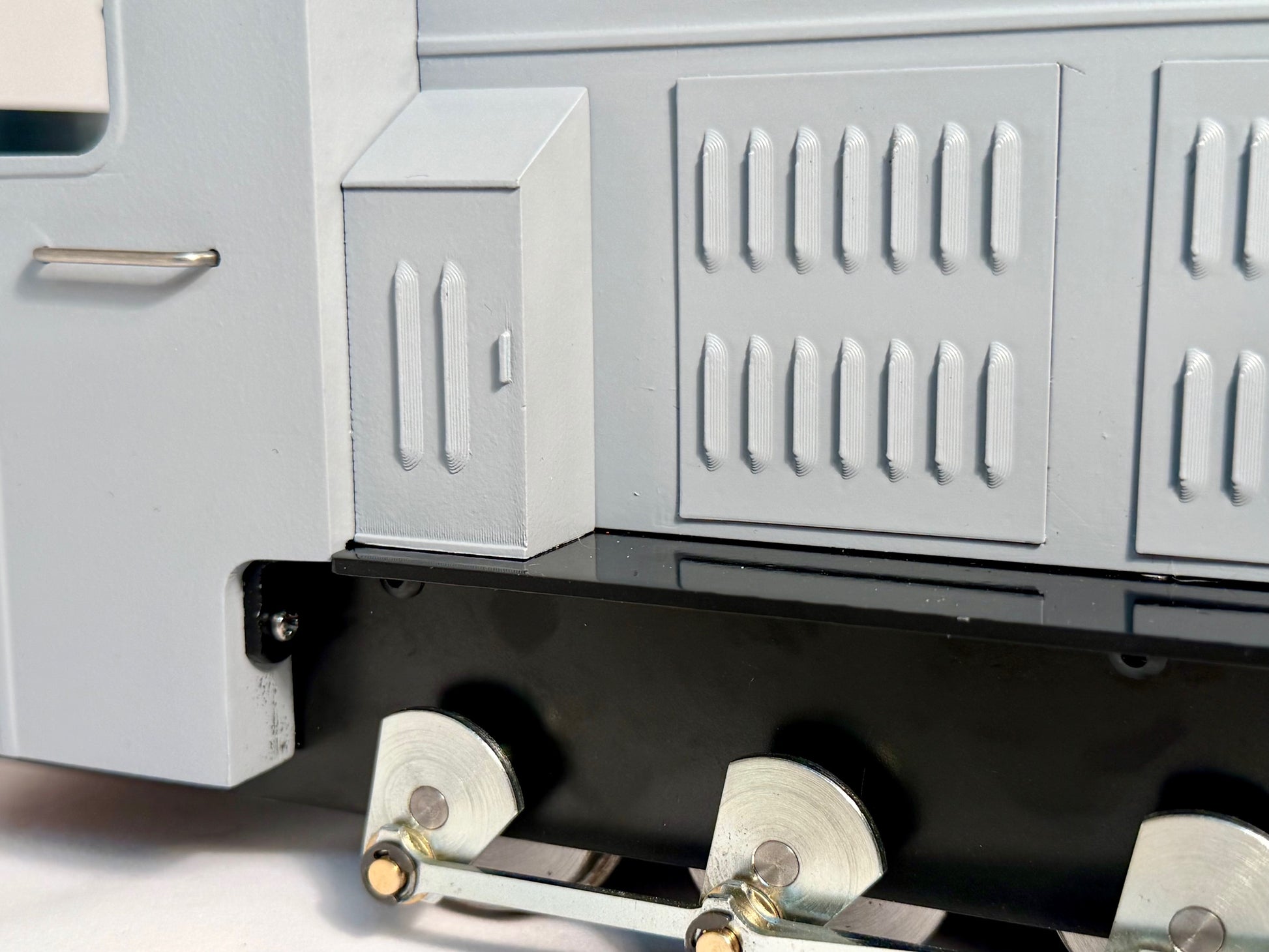

Maxitrak 16mm Scale Fowler 0-6-0DM
Maxitrak 16mm Scale Fowler 0-6-0DM

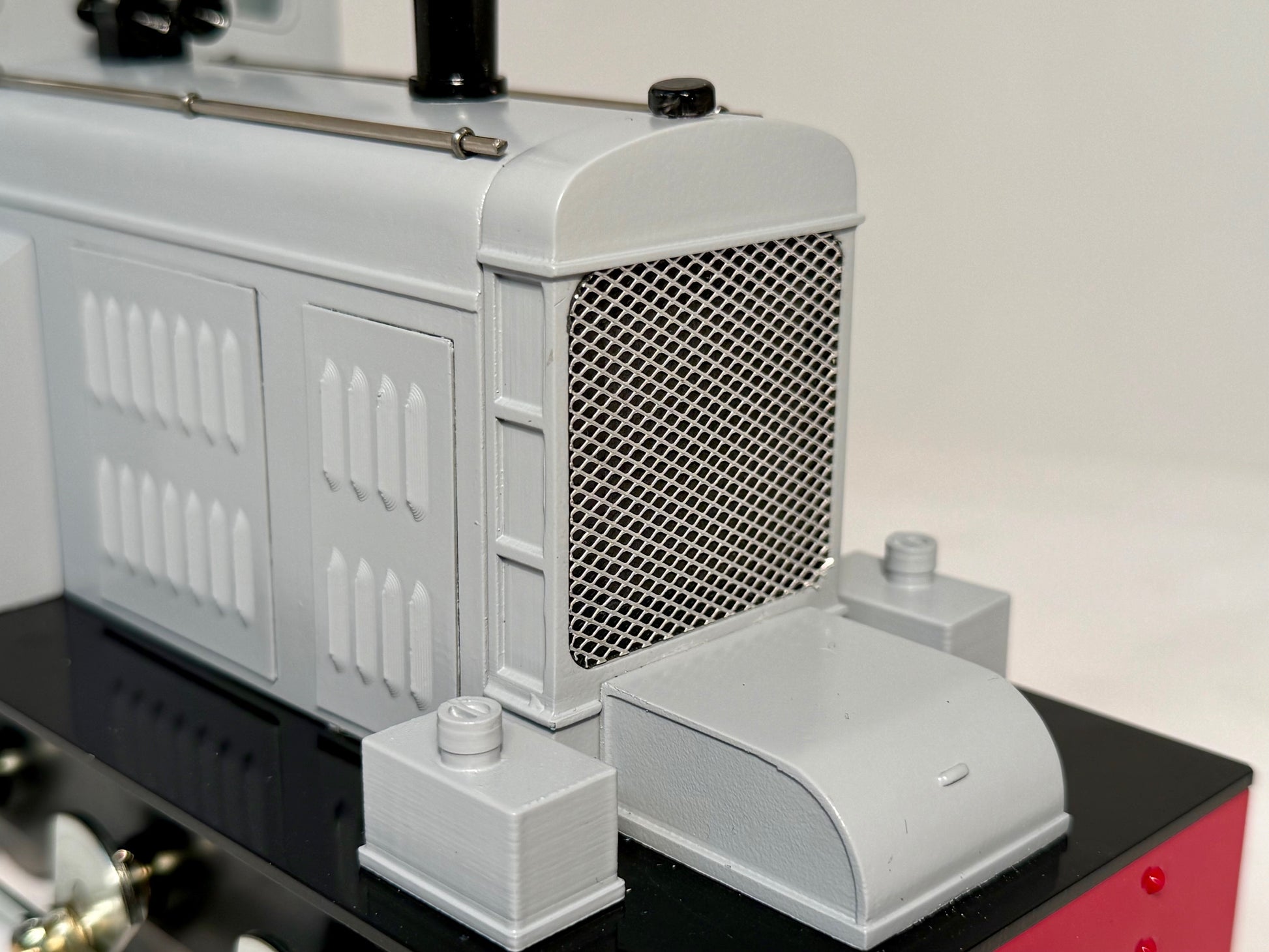

Our new 16mm Maxitrak Fowler 0-6-0 jack shaft diesel represents the type of industrial locomotive produced by Fowler of Leeds in the run up to the second World War. They featured a front mounted gear box and jack shaft system driving all six wheels. The cab footplate is low in the chassis giving a low overall height where clearances are tight. The centre wheels are flangeless making the model suitable for LGB number 1 radius. The chassis and foot plate are all steel construction with a robust (3mm thick) 3D printed body. Manual controls are mounted on a steel switch panel in the cab, there are also several remote-control options available. Full size versions survive in preservation in Australia.
UK built by Maxitrak using Essel Engineering parts.
Specifications:
Scale: 16mm /ft
Gauge: 45mm or 32mm – adjustable
Length: 234 mm over buffer beams.
Width: 98mm
Height: 148mm over roof
Wheel Dia: 30mm
Wheelbase: 80mm
Weight: 1.5 kg without battery
Geared: 12v motor with bevel gear drive to rear axle. Outside coupling rods 0-6-0 Jack Shaft Drive
Powered: 12v Battery
Coupler: Centre buffer/Clevis or Accucraft Chopper coupling.
Cab Controls: Manual control with charge point. Radio Control & sound options available
Livery: Blue/grey/maroon/green with red buffers and back chassis. Other liveries available to special order.
