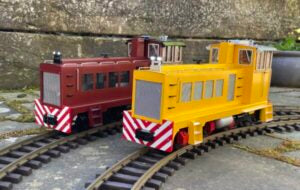

Accucraft UK / Maxitrak 16mm Scale EM Baldwin Diesel locomotive

The latest 16mm diesel model from Maxitrak & Accucraft UK is the E.M Baldwin. These engines were constructed by EM Baldwin and sons of Castle Hill, New South Wales, Australia. The company supplied smaller locomotives for industry from the 1950’s to the 1980’s. Designs included shunting, mining and tunnel locomotives but the most common surviving engines were built for the Queensland sugar industry. At this time the extensive 2ft gauge lines were changing from steam to diesel traction. EM Baldwin built a large number of the replacement diesels to a continuously evolving design, to the extend that there are hardly two alike. Engines and gearboxes varied depending on power requirements and suppliers delivery dates etc.

The usual sugar industry livery was bright yellow with red and white striped buffer beams, many enjoyed further enhancement with coloured stripes and panels giving the modeller many opportunities to customise the standard colour scheme. Many of these engines are still hard at work in the cane cutting season and form the backbone of the largest surviving 2ft gauge industrial railway system in the world.

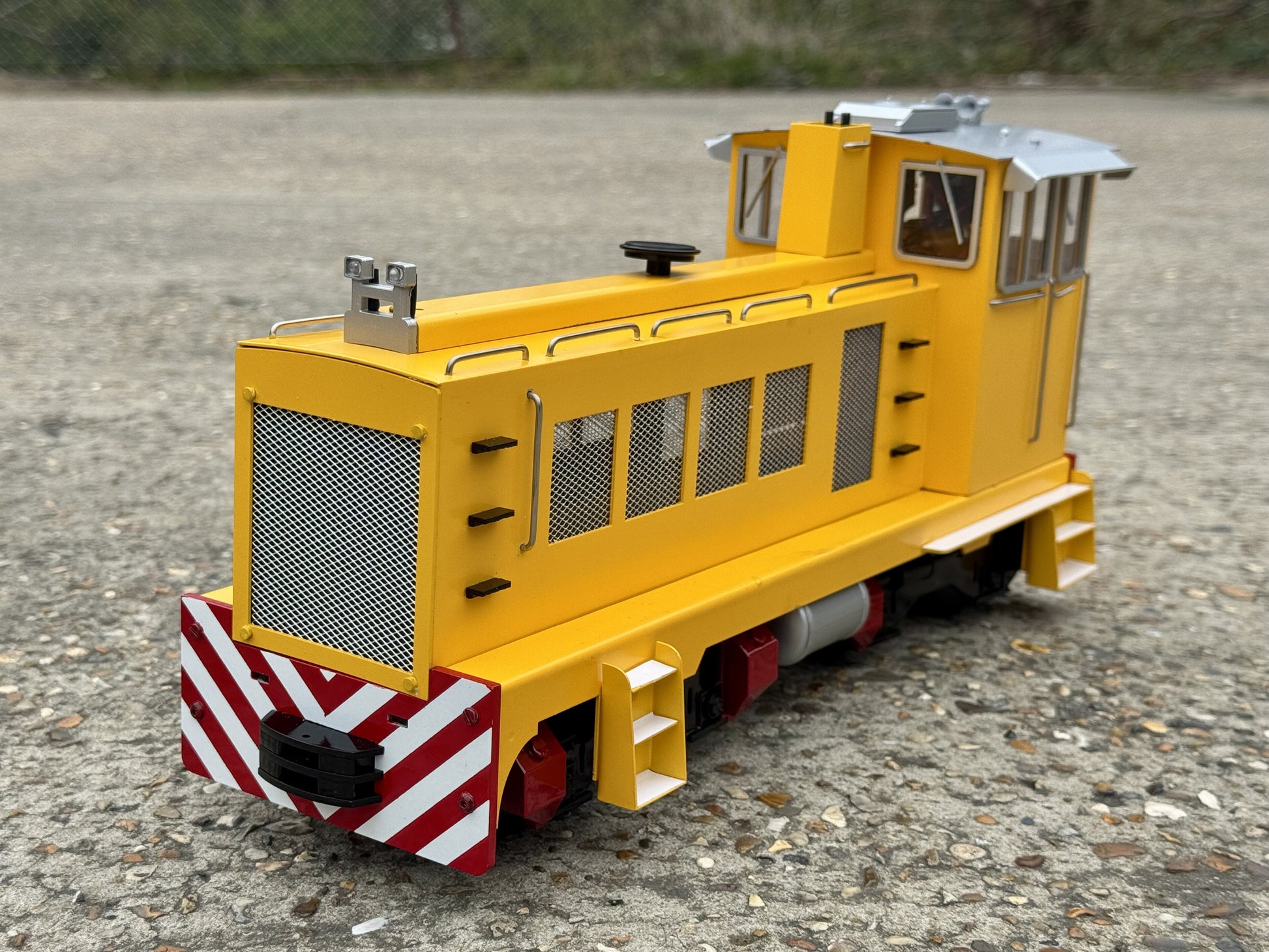

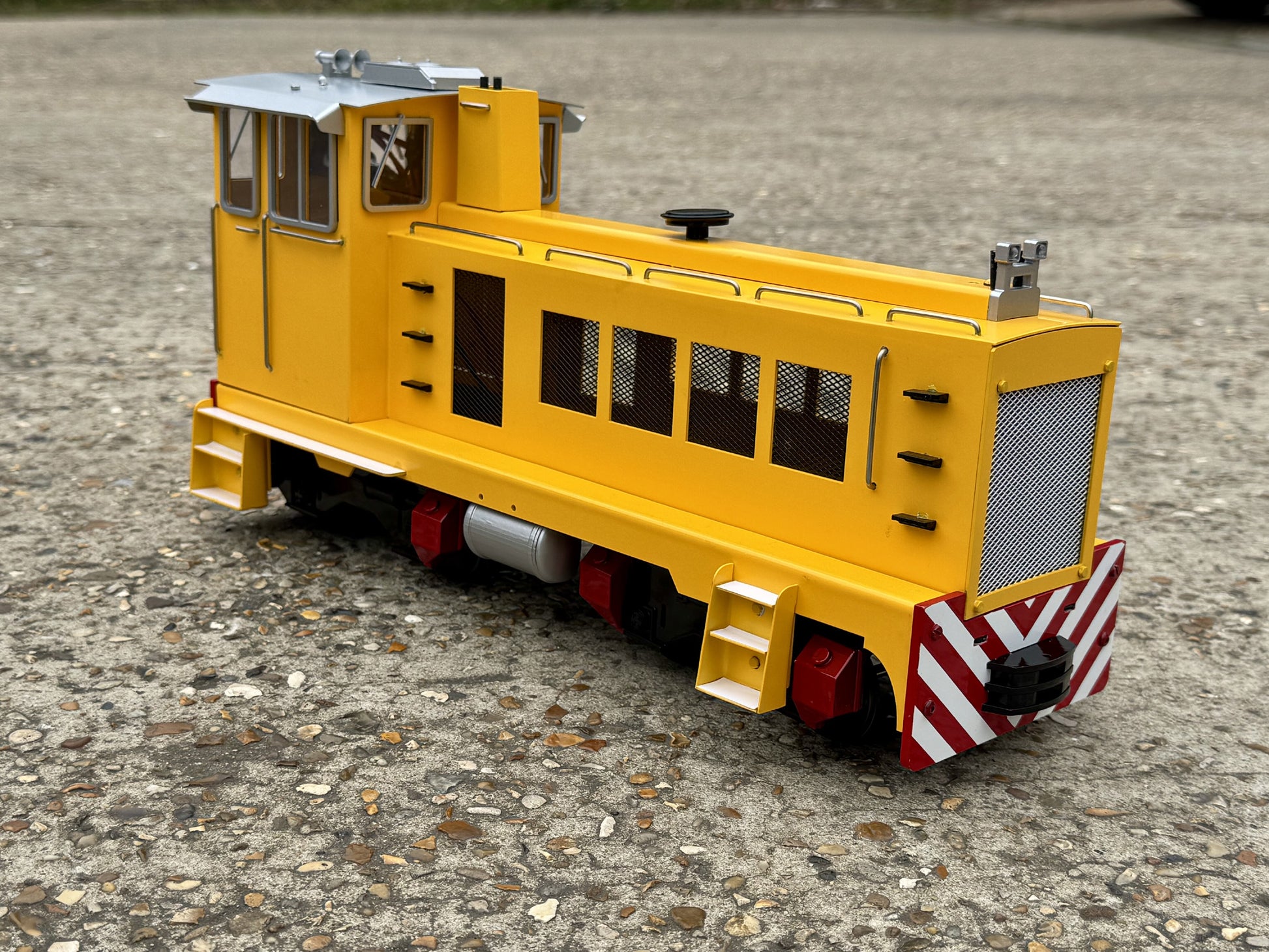

Our model features an all steel bonnet, chassis and full cab and incorporates the distinctive E.M Baldwin makers plates. Constructed with moulded and 3D printed parts to give an enhanced level of detail, including LED lighting set

Specifications:

Scale: 16mm /ft

Gauge: 45mm or 32mm – adjustable

Length: 328mm over buffer beams.

Width: 120mm (footsteps removable)

Height: 173mm over roof

Wheel Dia: 30mm

Bogie Wheelbase: 66mm

Weight: 2.6kg without battery

Geared: 12v motor with bevel gear drive to rear axle Or belt & pulley system

Powered: 12v Battery. Twin bogies with single or twin motors.

Three pocket coupler: this can be reconfigured to take an Accucraft chopper coupling

Cab Controls: Manual control with charge point on roof.

Radio Control & sound options available

Livery choice: yellow, alternative colour at additional cost

Other liveries available to special order
