Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order
Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order

Accucraft UK 16mm (1:19) SCALE BAGNALL 0-4-2T RHEIDOL Pre Order

Regular price
£1,695.00
Sale price
£1,695.00
Shipping calculated at checkout.
Quantity must be 1 or more

About the Product

Following the release of the gorgeous little Peckett, we are delighted to announce that our next small locomotive will be the Bagnall 2-4-0T Rheidol.  One of Archangel’s most successful models in the early days of 16mm scale, we are sure many associated with the hobby will have soft spot for this engine!  Originally named Treze de Maio (Portuguese for 13th May, the date on which slavery was abolished in Brazil), the engine was built by Bagnalls of Stafford for Collier Antunes for a sugar cane plantation in 1896 but never delivered as the order was cancelled, instead the locomotive was re-gauged from 2’ 5 ½” gauge to 2’ 3” gauge when it was sold to the Plynlimon and Hafan Tramway and named Talybont. In 1903, after the failure of that railway, it was purchased for the construction of the Vale of Rheidol Railway, re-gauged to 1’ 11 ¾” and renamed Rheidol. Absorbed by the GWR in 1923 it was numbered it 1198, but it was withdrawn and scrapped the following year, having never carried its GWR number.

 The model is gauge-adjustable (32mm and 45mm), gas-fired and fitted with a water top-up valve, water gauge with blow-down valve, lubricator and pressure gauge; constructed of stainless steel and etched brass with a copper boiler, the model will, as usual, be covered by our two-year warranty.  The anticipated pre-order RRP is £1695.00 (subject to the usual provisos), available late 2022 or early 2023.  Fitted with Accucraft chopper couplings, the model will be supplied with two chimneys, the original balloon stackand the more traditional type.  Available in six liveries, full details can be found on the Accucraft UK website. As ever, we’d like to thank David Fletcher for his superb drawings, illustrating the livery options. Specifications:





Scale: 16mm to 1 foot (1:19)

Gauge: 32mm or 45mm (adjustable)

Length: 268mm

Width: 100mm

Height: 136mm

Boiler: Centre Flue

Working Pressure: 60psi

Weight: TBC

Minimum Radius: 600mm (2 feet)

Reversing Gear: Piston type, reverse by lever in the cab

Valve Gear: Simulated Stephenson’s link

Fuel: Butane Gas

Boiler Fittings: Safety valve, pressure gauge, water gauge with blow-down valve

Cab Controls: Steam regulator, gas regulator, reverse lever, lubricator

1198 numberplates (supplied loose as indicated)





Colours available, subject to production batch:

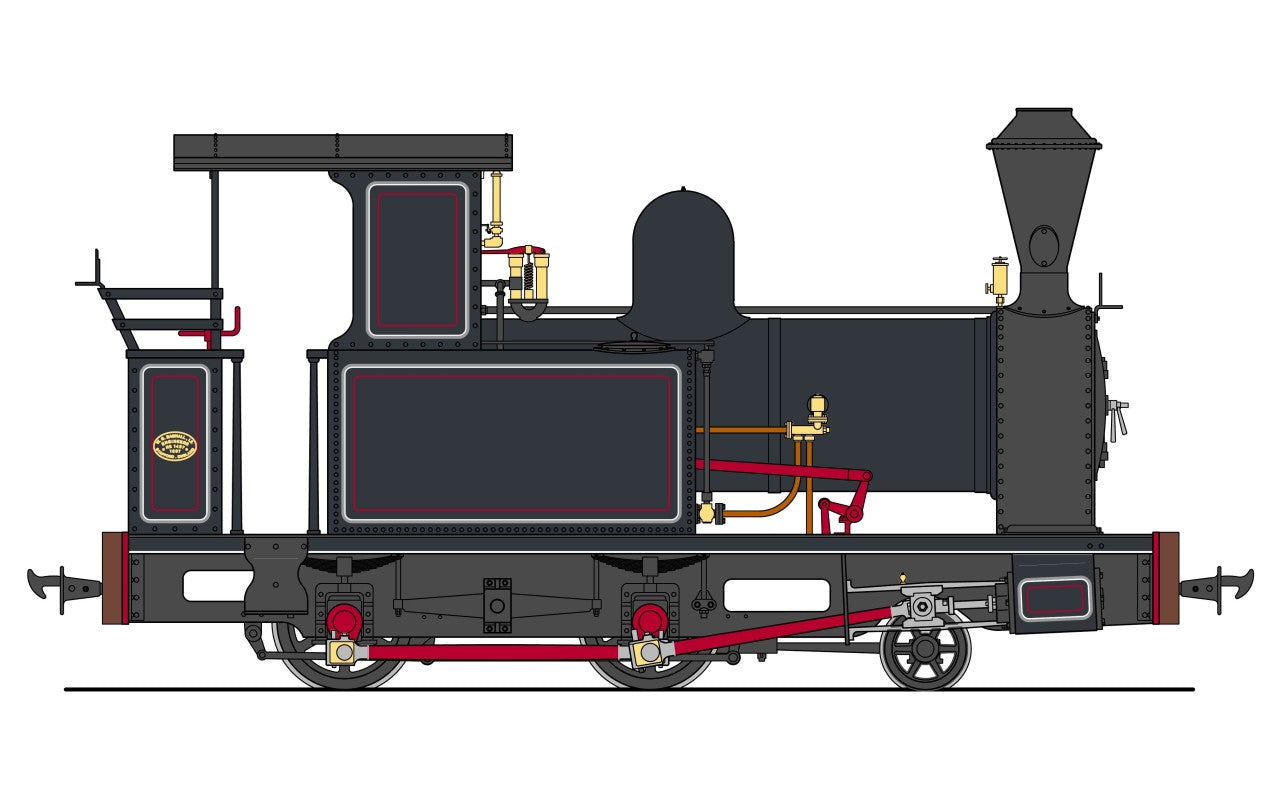

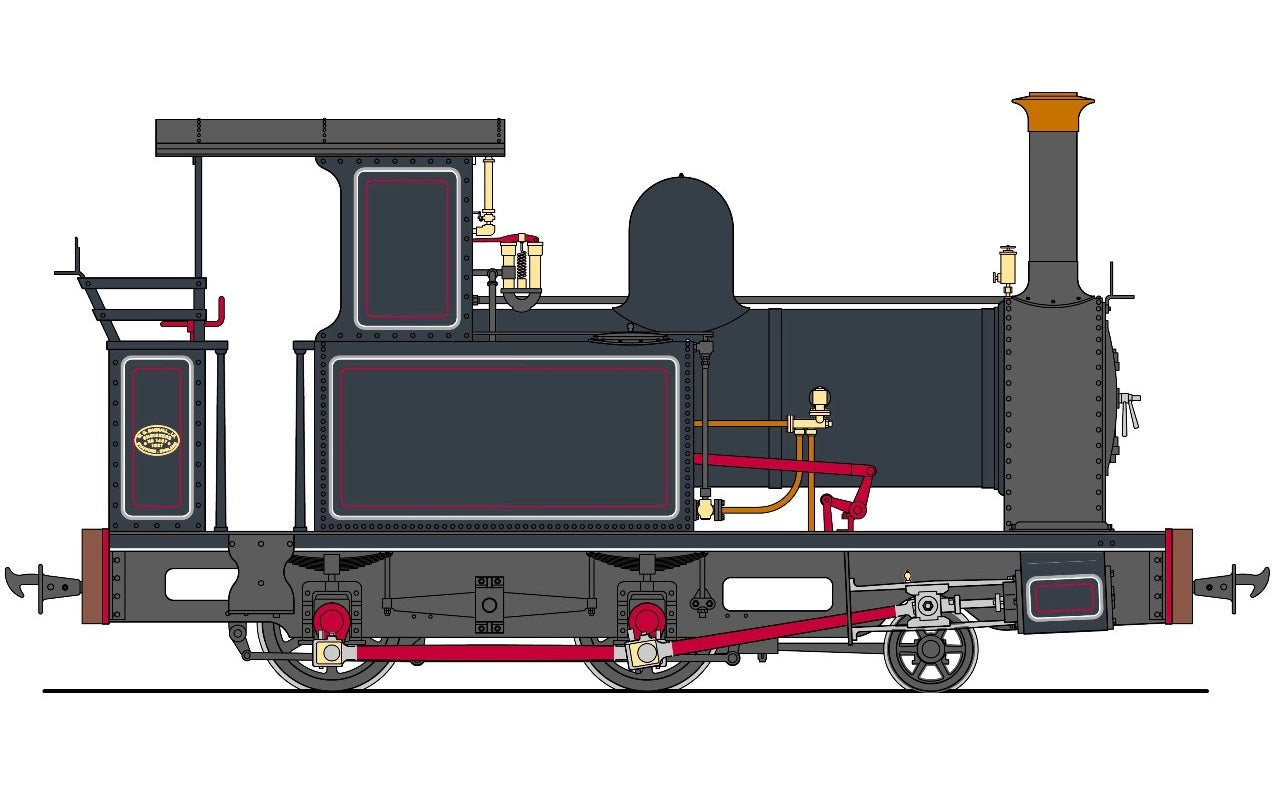

S19-39A Bagnall 2-4-0T in Lined Black

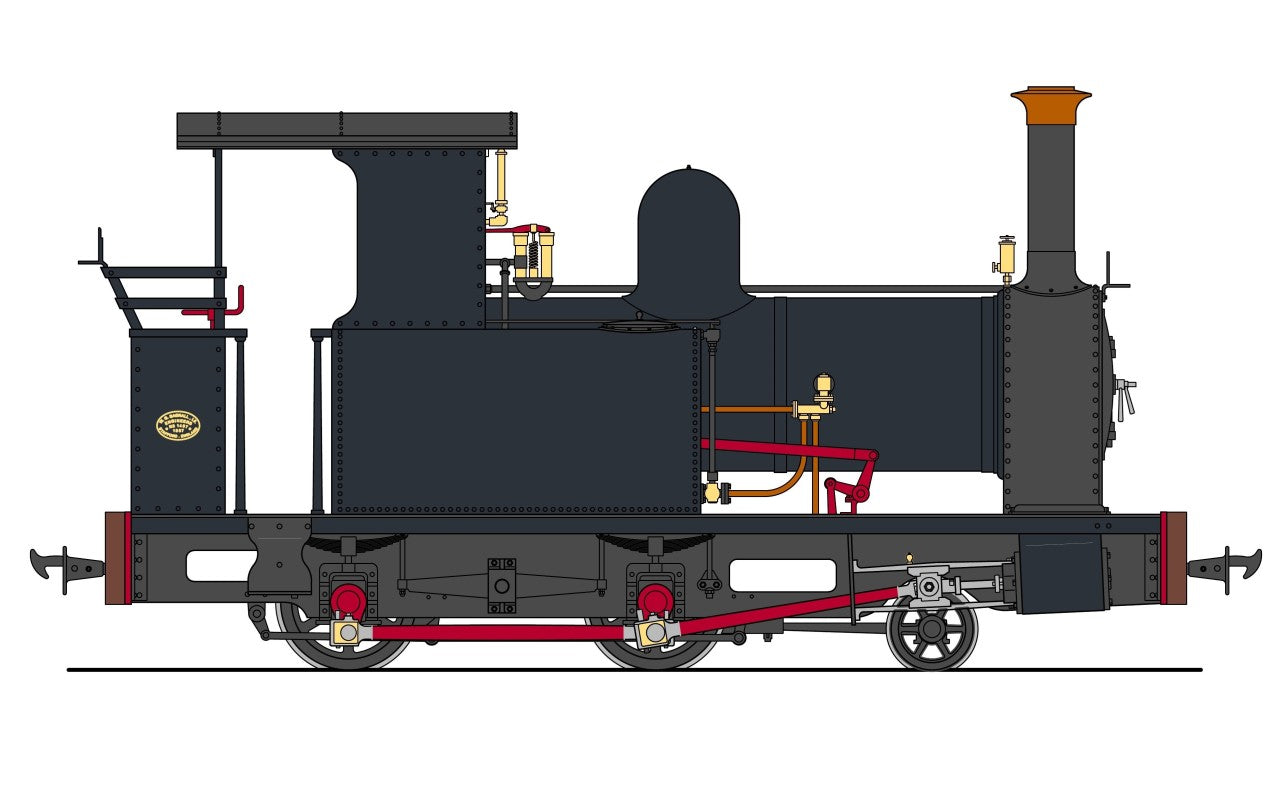

S19-39B Bagnall 2-4-0T in Plain Black (‘1198’ plates included)

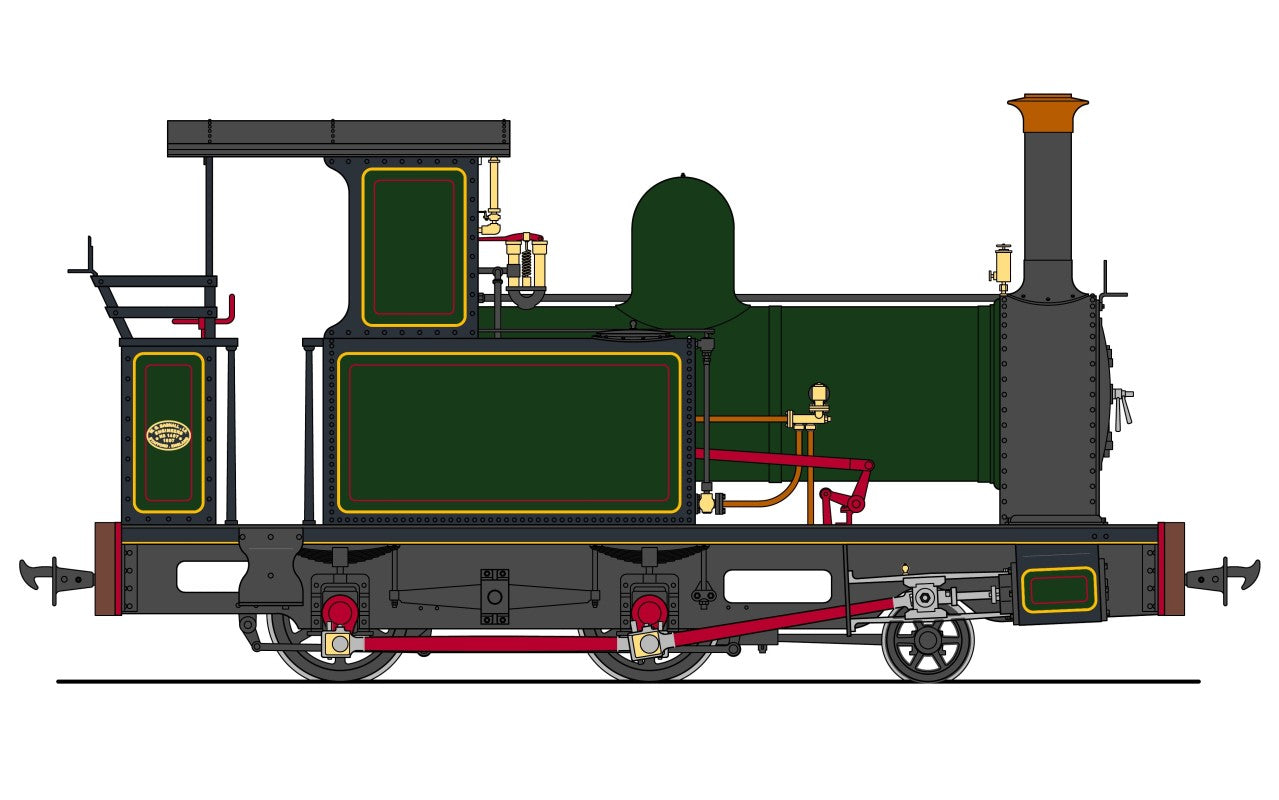

S19-39C Bagnall 2-4-0T in Lined Dark Green

S19-39D Bagnall 2-4-0T in Plain GWR Green (‘1198’ plates included)

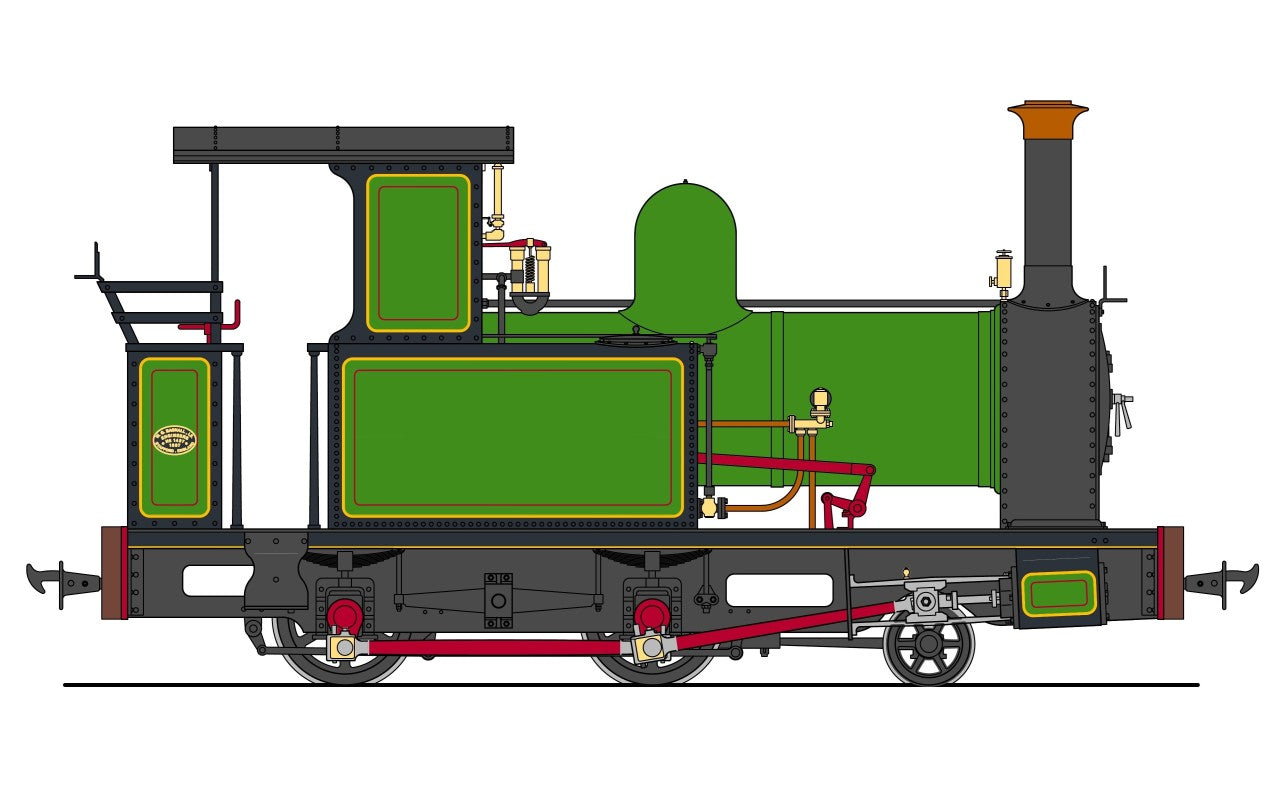

S19-39E Bagnall 2-4-0T in Lined Light Green

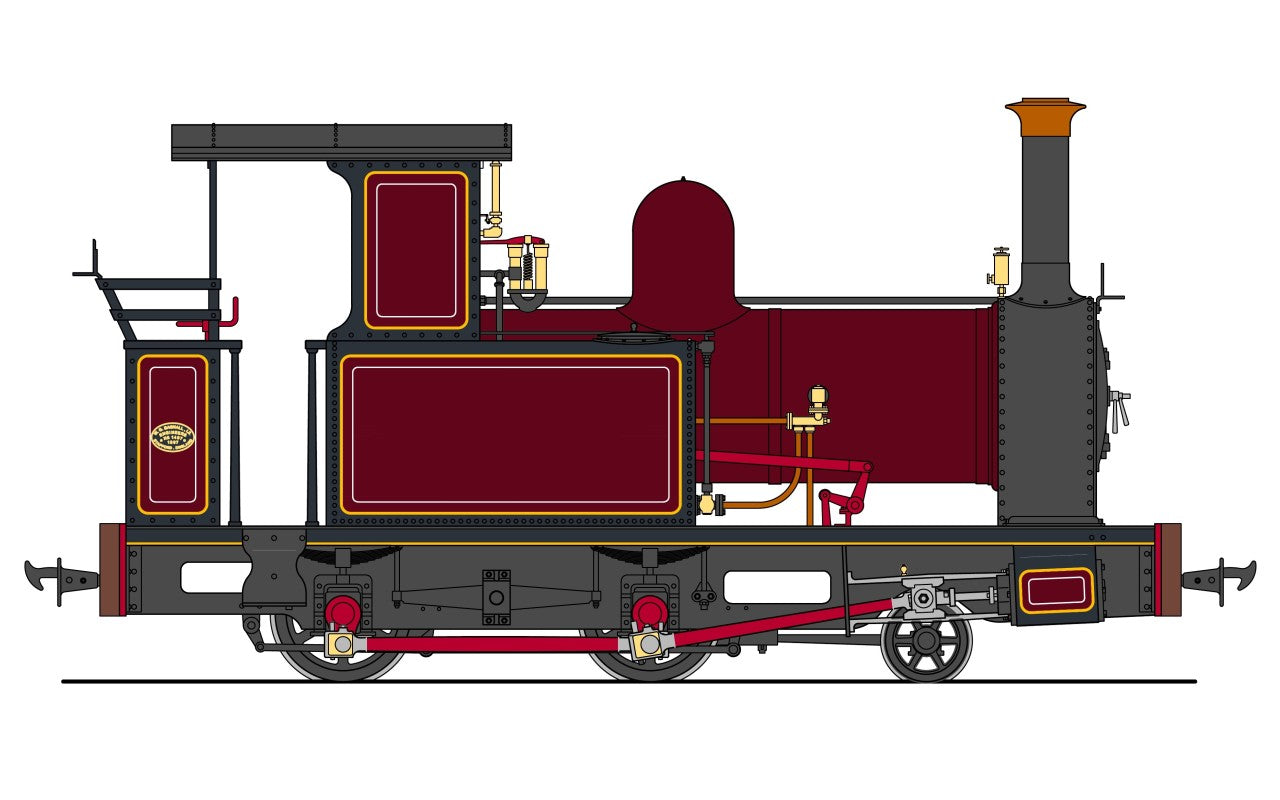

S19-39F Bagnall 2-4-0T in Lined Maroon
